Introduction:
- If the car is only installed with front multi-piston caliper, it will cause unbalanced brake force. We recommend you to install front and rear multi-piston caliper together to balance the brake force.
- If you can’t purchase front and rear multi-piston caliper at same time due to the budget or limited cost, you can choose this product and compatible with front multi-piston caliper to meet the requirement of brake balance.

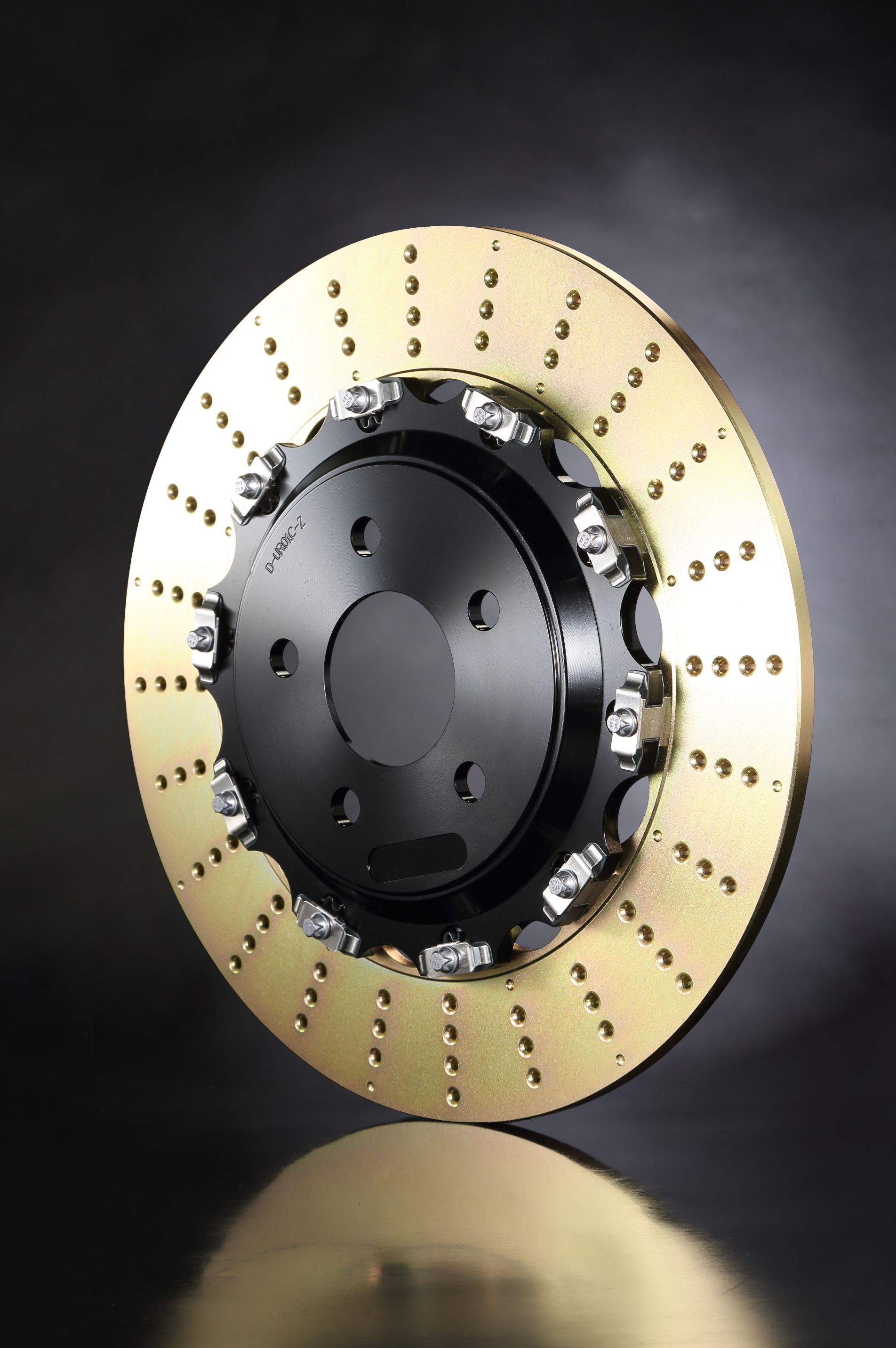

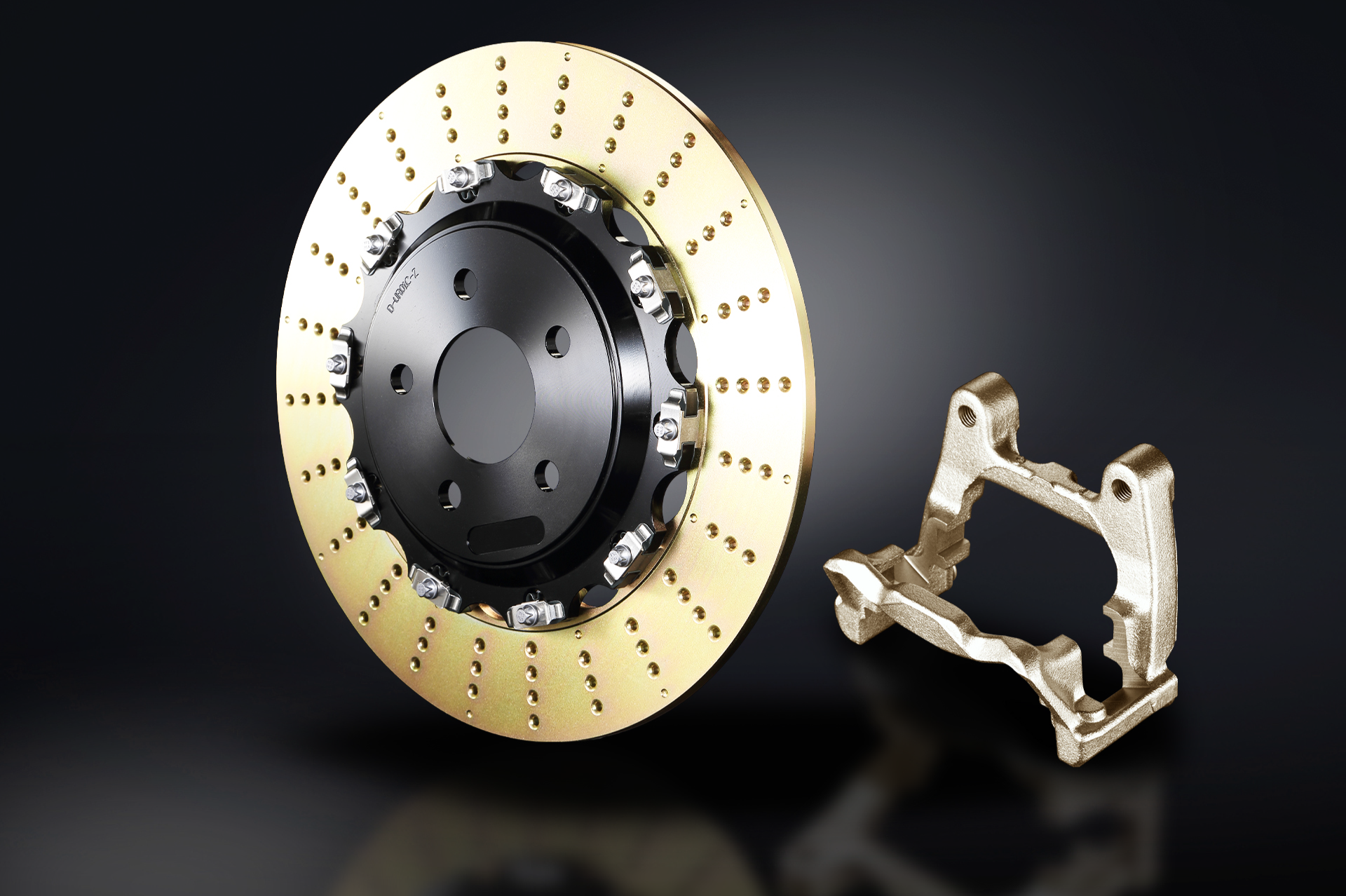

- The enlarged rotor of this product is two-piece design. The aluminum center bell (A6061 T6) is precisely made by CNC and lowers the loading of unsprung weight.
- With the enlarged diameter of the rotor, it increases the brake torque, improve the brake force effectively and shorten the stopping distance.
- Besides, by using hot dip galvanizing treatment on the appearance, it makes the rust-proof effect last longer and pleasant to look.
- If a specific car model is not on our list, customization is avaliable.

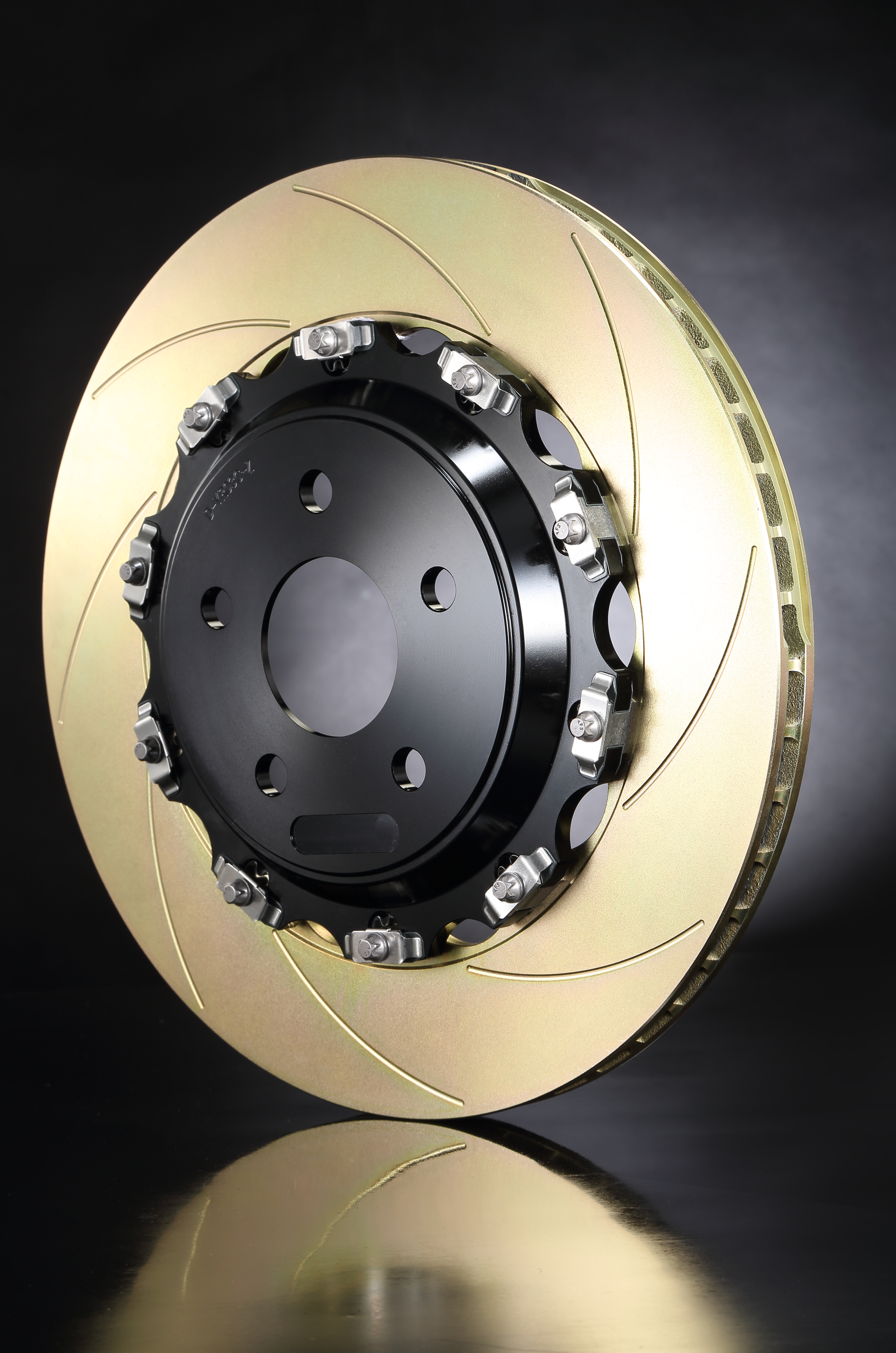

- Drilled disc and slotted disc are avaliable options for all enlarged disc and unit price is identical.
- 350mm rotor and bigger size all go with floating disc.
- When you place an order, please note that if OE disc is solid design, please choose our solid disc; if OE disc is vented design, please order our vented disc.

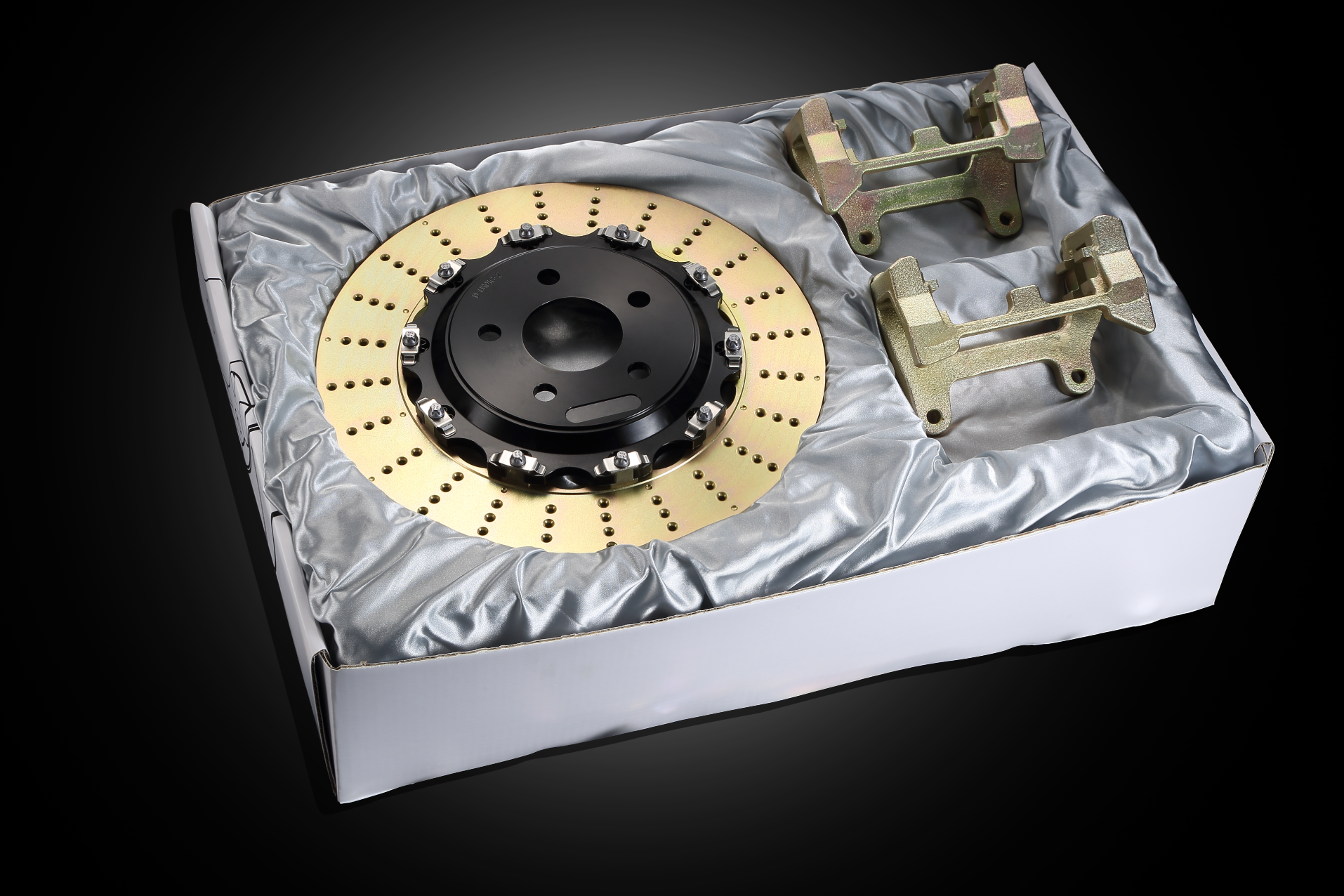

- All of the rear enlarged disc kits are packed with OE extended C type bracket to be installed on the OE caliper.
- For car models that come with ▲ mean the brake kit needs to be installed on OE caliper with mounting bracket.
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-AL01 | 4C (OE292*49*22mm) | 13~18 | 5X98 | $1220 ▲ |
|||||||
| RD-AL02 | GIULIA 2.0 952(EPB)(OE320*54*22mm) | 15~UP | 5X110 | $1480 ▲ |
|||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-AU10 | A3 (8P)(OE255*45*10mm) | 04~12 | 5X112 | $690 | |||||||
| RD-AU02 | A3 (8P)(OE282*52*12mm) | 04~12 | 5X112 | $690 | $830 | ||||||
| RD-AU11 | A3 (8P)(OE272*52*10mm) | 04~12 | 5X112 | $690 | $830 | ||||||
| RD-AU03 | A3 (8V)(EPB)(OE272*52*10mm) | 13~UP | 5X112 | $690 | $1030 ▲ |
$1020 | |||||
| RD-AU01 | A4 (B8)(EPB)(OE300*55*12mm) | 11~15 | 5X112 | $690 | $830 | ||||||
| RD-AU07 | A4 (B9)(EPB)(OE300*52*12mm) | 16~UP | 5X112 | $690 | $830 | ||||||
| RD-AU09 | A4 (B9)(EPB)(OE330*52*22mm) | 16~UP | 5X112 | $1020 | $1280 | ||||||
| RD-AU01-1 | A5 (8T)(EPB)(OE300*55*12mm) | 11~16 | 5X112 | $690 | $830 | ||||||
| RD-AU07-1 | A5(8W6)(EPB)(OE300*52*12mm) | 17~UP | 5X112 | $690 | $830 | ||||||
| RD-AU09-3 | A5 (8W6)(EPB)(OE330*52*22mm) | 17~UP | 5X112 | $1020 | $1280 | ||||||
| RD-AU01-2 | A6(C7)(EPB)(OE300*55*12mm) | 12~18 | 5X112 | $690 | $830 | ||||||
| RD-AU01-4 | A7(4G8)(EPB)(OE300*55*12mm) | 11~17 | 5X112 | $690 | $830 | ||||||
| RD-AU04-4 | A7(4G8)(EPB)(OE330*55*22mm) | 11~17 | 5X112 | $1020 | $1280 | ||||||
| RD-AU04-5 | A8 (D44H)(EPB)(OE330*52*22mm) | 10~17 | 5X112 | $1280 | |||||||
| RD-AU02-2 | Q3(8U)(EPB)(OE282*52*12mm) | 11~18 | 5X112 | $690 | $830 | ||||||
| RD-AU01-3 | Q5 (8R)(EPB)(OE300*55*12mm) | 08~17 | 5X112 | $690 | $830 | ||||||
| RD-AU04-3 | Q5 (8R)(EPB)(OE330*55*22mm) | 08~17 | 5X112 | $1020 | $1280 | ||||||
| RD-AU09-1 | Q5 (FY)(EPB)(OE330*52*22mm) | 17~UP | 5X112 | $1020 | $1280 | ||||||
| RD-AU09-2 | Q7 (4M)(EPB)(OE330*52*22mm) | 16~UP | 5X112 | $1020 | $1280 | ||||||
| RD-AU04-6 | RS5(8T)(EPB)(OE330*54*22mm) | 10~15 | 5X112 | $1020 | $1280 | ||||||
| RD-AU05 | S3 (8P)(OE310*52*22mm) | 06~12 | 5X112 | $780 | $1020 | ||||||
| RD-AU06 | S3 (8V)(EPB)(OE310*52*22mm) | 13~UP | 5X112 | $780 | $1020 | $1280 | |||||
| RD-AU04 | S4 (B8)(EPB)(OE330*55*22mm) | 11~15 | 5X112 | $1020 | $1280 | ||||||
| RD-AU04-1 | S5(8T)(EPB)(OE330*55*22mm) | 07~12 | 5X112 | $1020 | $1280 | ||||||
| RD-AU04-2 | S6 (C7)(EPB)(OE330*55*22mm) | 12~18 | 5X112 | $1020 | $1280 | ||||||
| RD-AU02-1 | TT (8J)MK2(OE286*52*12mm) | 06~14 | 5X112 | $690 | $830 | ||||||
| RD-AU05-1 | TT-S (8J)MK2(OE310*52*22mm) | 08~14 | 5X112 | $780 | $1020 | ||||||
| RD-AU05-2 | TT-RS (8J)(OE310*52*22mm) | 09~14 | 5X112 | $780 | $1020 | ||||||
| RD-AU03-1 | TT (8S)MK3(EPB)(OE272*52*10mm) | 14~UP | 5X112 | $690 | $1030 ▲ |
$1020 | |||||
| RD-AU06-1 | TT-S (8S)MK3(EPB)(OE310*52*22mm) | 14~UP | 5X112 | $780 | $1020 | $1280 | |||||
| RD-AU24-2 | TT RS (8S) MK3(EPB)(OE310*52*22mm) | 15~UP | 5X112 | $780 | $1020 | $1280 | |||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-BM08 | F 40 1 SERIES(EPB)(OE280*41*10mm) | 19~UP | 5X112 | $690 | $830 | ||||||
| RD-BM09 | G 20 3 SERIES(EPB)(OE300*42*20mm) | 19~UP | 5X112 | $1020 | $1280 | ||||||
| RD-BM10 | G 20 3 SERIES(EPB)(OE345*65*24mm) | 19~UP | 5X112 | $1280 | |||||||
| RD-BM09-1 | G 21 3 SERIES(EPB)(OE300*42*20mm) | 19~UP | 5X112 | $1020 | $1280 | ||||||
| RD-BM10-1 | G 21 3 SERIES(EPB)(OE345*65*24mm) | 19~UP | 5X112 | $1280 | |||||||
| RD-BM01 | F10 / F11 5 SERIES(EPB)(OE330*55*20mm) | 10~16 | 5X120 | $1020 | $1280 | ||||||
| RD-BM04 | F10 / F11 5SERIES (EPB)(OE345*65*24mm) | 10~16 | 5X120 | $1280 | |||||||
| RD-BM05 | G 30 5 SERIES(EPB)(OE330*55*20mm) | 17~UP | 5X112 | $1020 | $1280 | ||||||
| RD-BM06 | G 30 5 SERIES(EPB)(OE345*65*24mm) | 17~UP | 5X112 | $1280 | |||||||
| RD-BM05-1 | G 31 5 SERIES(EPB)(OE330*55*20mm) | 17~UP | 5X112 | $1020 | $1280 | ||||||
| RD-BM06-3 | G 31 5 SERIES(EPB)(OE345*65*24mm) | 17~UP | 5X112 | $1280 | |||||||
| RD-BM06-1 | G 11 7 SERIES(EPB)(OE345*65*24mm) | 15~UP | 5X112 | $1280 | |||||||
| RD-BM06-2 | G 12 7 SERIES(EPB)(OE345*65*24mm) | 15~UP | 5X112 | $1280 | |||||||
| RD-BM01-1 | I8(EPB)(OE330*55*20mm) | 14~UP | 5X112 | $1020 | $1280 | ||||||
| RD-BM02 | X1 F48 (EPB)(OE280*45*10mm) | 16~UP | 5X112 | $690 | $830 | ||||||
| RD-BM03 | X3 F25(EPB)(OE330*55*20mm)(non USA) | 11~17 | 5X120 | $1020 | $1280 | ||||||
| RD-BM05-2 | X3 G01(EPB)(OE330*55*20mm) | 18~UP | 5X112 | $1020 | $1280 | ||||||
| RD-BM03-1 | X4 F26(EPB)(OE330*55*20mm)(non USA) | 14~18 | 5X120 | $1020 | $1280 | ||||||
| RD-BM06-5 | X4 G02(EPB)(OE345*65*24mm) | 18~UP | 5X112 | $1280 | |||||||
| RD-BM06-4 | X5 G05(EPB)(OE345*65*24mm) | 18~UP | 5X112 | $1280 | |||||||
| RD-BM07 | Z4 E89 35I(EPB)(OE324*55*20mm) | 09~16 | 5X120 | $1480 ▲ |
|||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-FI01 | 500(NON-DRUM)(OE240*45*11mm) | 07~14 | 4X98 | $790 ▲ |
|||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-FO01 | FOCUS MK3(OE271*45*11mm) | 11~18 | 5X108 | $690 | $830 | ||||||
| RD-FO03 | FOCUS MK4 (EPB)(Rr Twist-beamSuspension)(OE272*45*11mm) | 19~UP | 5X108 | $830 | $1020 | ||||||
| RD-FO04-1 | FOCUS MK4 (EPB)(Rr Multi-Link Suspension)(OE302*45*11mm) | 19~UP | 5X108 | $1030 ▲ |
$1220 ▲ |
||||||
| RD-FO02 | MONDEO MK5(EPB)(OE302*45*11mm) | 15~UP | 5X108 | $690 | $830 | ||||||
| RD-FO04 | KUGA MK3 AWD(EPB)(OE302*45*11mm) | 19~UP | 5X108 | $1030 ▲ |
$1220 ▲ |
||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-HY01 | TUCSON(EPB)(OE302*40*10mm) | 16~21 | 5X114.3 | $830 | |||||||
| RD-HY02 | ELANTRA (NONSPORT)(262*38*9.8mm) | 16~UP | 5X114.3 | $790 ▲ |
|||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-HN01 | CIVIC FD1(Not TYPE R)(OE260*45*9mm) | 05~11 | 5X114.3 | $690 | |||||||
| RD-HN01-1 | CIVIC FB(R18/R20)(OE260*45*9mm) | 12~15 | 5X114.3 | $690 | |||||||
| RD-HN02 | CIVIC FC1(JAPAN)(EPB)(OE260*45*9mm) | 16~UP | 5X114.3 | $690 | $830 | ||||||
| RD-HN04 | CR-V MK5(EPB)(OE310*50*10mm) | 17~22 | 5X114.3 | $690 | $830 | ||||||
| RD-HN04-1 | CR-V MK6(EPB)(OE310*50*10mm) | 23~UP | 5X114.3 | $690 | $830 | ||||||
| RD-HN05 | FIT MK4 (EPB)(OE239*36*9mm) | 20~UP | 4X100 | $790 ▲ |
$890 ▲ |
$1030 ▲ |
|||||
| RD-HN03 | HR-V VEZEL(FWD)(EPB)(OE282*45*10mm) | 13~21 | 5X114.3 | $690 | $830 | ||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-JA02 | F-PACE(EPB)(OE326*55*20mm) | 16~UP | 5X108 | $1480 ▲ |
|||||||
| RD-JA01 | XE 2.0t(EPB)(OE326*55*20mm) | 16~UP | 5X108 | $1480 ▲ |
|||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-LE01 | NX(AZ10)(EPB)(OE281*40*12mm) | 15~UP | 5X114.3 | $690 | $1030 | ||||||
| RD-LE02 | RX(AL20)(EPB)(OE338*40*18mm) | 15~UP | 5X114.3 | $1020 | $1280 | ||||||
| RD-LE03 | UX(ZA10)(EPB)(OE281*40*12mm) | 19~UP | 5X114.3 | $690 | $1030 ▲ |
||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-ME01 | W176 A CLASS(EPB)(OE276*50*9mm) | 13~18 | 5X112 | $830 | |||||||
| RD-ME02 | W176 A CLASS 45 AMG(EPB)(OE330*50*20mm) | 13~18 | 5X112 | $1020 | $1280 | ||||||
| RD-ME07 | W177 A CLASS(EPB)(OE296*47*12mm) | 19~UP | 5X112 | $830 | $1020 | ||||||
| RD-ME01-1 | W246 B CLASS(EPB)(OE276*50*9mm) | 12~18 | 5X112 | $830 | |||||||
| RD-ME07-1 | W247 B CLASS(EPB)(OE296*47*12mm) | 19~UP | 5X112 | $830 | $1020 | ||||||
| RD-ME03 | W205 C CLASS(EPB)(OE300*55*10mm) | 15~21 | 5X112 | $690 | $830 | ||||||
| RD-ME05-2 | W205 C CLASS(EPB)(OE300*55*22mm) | 15~21 | 5X112 | $1020 | |||||||
| RD-ME05-1 | W205 C CLASS(EPB)(OE321*60*24mm) | 15~21 | 5X112 | $1280 | |||||||
| RD-ME09 | W206 C CLASS(EPB)(OE300*53*22mm) | 21~UP | 5X112 | $1220 ▲ |
$1480 ▲ |
||||||
| RD-ME04 | W213 E CLASS(EPB)(OE300*55*22mm) | 17~UP | 5X112 | $1020 | $1280 | ||||||
| RD-ME01-2 | C117 CLA CLASS(EPB)(OE295*50*10mm) | 13~UP | 5X112 | $830 | |||||||
| RD-ME02-1 | C117 CLA CLASS 45 AMG(EPB)(OE330*50*20mm) | 13~UP | 5X112 | $1020 | $1280 | ||||||
| RD-ME08 | C118 CLA (INCLUDING 4 MATIC) (Rr Multi-Link Suspension)(EPB)(OE320*51*12mm) | 19~UP | 5X112 | $1220 ▲ |
|||||||
| RD-ME01-3 | X156 GLA CLASS(EPB)(OE295*50*10mm) | 14~UP | 5X112 | $830 | |||||||
| RD-ME02-2 | X156 GLA CLASS 45 AMG(EPB)(OE330*50*20mm) | 14~UP | 5X112 | $1020 | $1280 | ||||||
| RD-ME05 | X253/ C253 GLC(EPB)(OE321*60*24mm) | 16~UP | 5X112 | $1280 | |||||||
| RD-ME06-1 | W166 GLE (OE345*45*22mm) | 16~19 | 5X112 | $1280 | |||||||
| RD-ME06-2 | C292 GLE COUPE(OE345*45*22mm) | 16~19 | 5X112 | $1280 | |||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-MA01 | 3(OE265*45*10mm) | 09~13 | 5X114.3 | $690 | $830 | ||||||
| RD-MA04 | 3 (OE265*40*9mm) | 14~18 | 5X114.3 | $690 | $830 | ||||||
| RD-MA03 | 3 (EPB)(OE265*45*10mm) | 17~18 | 5X114.3 | $690 | $830 | ||||||
| RD-MA09 | 3 (BP)(EPB)(OE264*39*9mm) | 19~UP | 5X114.3 | $690 | $830 | $1020 | |||||
| RD-MA07 | 6(ATENZA)(φ10)(OE278*45*10mm) | 13~14 | 5X114.3 | $690 | $830 | ||||||
| RD-MA07-1 | 6(ATENZA)(φ12)(OE278*45*10mm) | 13~14 | 5X114.3 | $690 | $830 | ||||||
| RD-MA05 | 6(ATENZA)(EPB)(OE278*45*10mm) | 15~UP | 5X114.3 | $690 | $830 | ||||||
| RD-MA06 | CX-5(KE)(φ10)(OE303*40*10mm) | 13~14 | 5X114.3 | $690 | $830 | ||||||
| RD-MA06-1 | CX-5(KE)(φ12)(OE303*40*10mm) | 13~14 | 5X114.3 | $690 | $830 | ||||||
| RD-MA02 | CX-5(KE)(EPB)(OE303*40*10mm) | 15~17 | 5X114.3 | $690 | $830 | ||||||
| RD-MA02-1 | CX-5(KF)(EPB)(OE303*40*10mm) | 17~UP | 5X114.3 | $690 | $830 | ||||||
| RD-MA08 | CX-9(TC)(EPB)(OE325*45*11mm) | 17~UP | 5X114.3 | $830 | $1020 | ||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-MI03 | COOPER(R56)(OE259*35*10mm) | 07~14 | 4X100 | $690 | |||||||
| RD-MI02 | COOPER S(R60) COUNTRY MAN(OE280*45*10mm) | 10~16 | 5X120 | $690 | $830 | ||||||
| RD-MI04 | CLUBMAN(F54)(OE280*45*10mm) | 16~UP | 5X112 | $690 | $830 | ||||||
| RD-MI04-2 | CLUBMAN (F54)(EPB)(ALL4 JCW)(OE330*55*20mm) | 16~UP | 5X112 | $1480 ▲ |
|||||||
| RD-MI01 | COOPER S(F55)/(F56)(OE260*35*10mm) | 14~UP | 5X112 | $690 | $830 | ||||||
| RD-MI04-1 | COOPER S (F60) COUNTRYMAN(EPB)(OE280*45*10mm) | 17~UP | 5X112 | $690 | $830 | ||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-MT01 | ECLIPSE CROSS(EPB)(OE302*40*10mm) | 18~UP | 5X114.3 | $830 | $1020 | ||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-NI01 | ALTIMA(L34)(EPB)(OE280*39*9.8mm) | 19~UP | 5X114.3 | $890 ▲ |
|||||||
| RD-NI02 | KICKS(OE260*40*8.2mm) | 18~UP | 4X100 | $790 ▲ |
|||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-PE01 | 308 GTI (T9)(EPB)(268*45*12mm) | 13~UP | 5X108 | $790 ▲ |
|||||||
| RD-PE02 | 2008 MK2(P24) (EPB) (OE248*36.5*10mm) | 19~UP | 4X108 | $790 ▲ |
$890 ▲ |
$1030 ▲ |
|||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-PO01 | MACAN(EPB)(OE330*55*22mm) | 14~UP | 5X112 | $1020 | $1280 | ||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-SK07 | KODIAQ(EPB)(OE300*52*12mm) | 16~UP | 5X112 | $690 | $1030 ▲ |
$1020 | |||||
| RD-SK05 | KAROQ(EPB)(OE272*50*10mm) | 17~UP | 5X112 | $690 | $1030 ▲ |
$1020 | |||||
| RD-SK08 | KAMIQ(OE230*42*9mm) | 19~UP | 5X100 | $690 | |||||||
| RD-SK04 | OCTAVIA MK31.4 TSI (5E)(OE255*43*10mm) | 13~19 | 5X112 | $690 | |||||||
| RD-SK06 | OCTAVIA MK31.6 TDI (5E)(OE255*43*10mm) | 13~19 | 5X112 | $690 | |||||||
| RD-SK02 | OCTAVIA RSMK3 (5E)(OE272*50*10mm) | 17~19 | 5X112 | $690 | $830 | ||||||
| RD-SK03 | SUPERB B8(EPB)(OE272*52*10mm) | 15~UP | 5X112 | $690 | $1030 ▲ |
$1020 | |||||
| RD-SK01 | SUPERB B8(EPB)(OE310*52*22mm) | 15~UP | 5X112 | $780 | $1020 | $1280 | |||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-SU04 | FORESTER(SK)(EPB)(OE286*45*17mm) | 18~UP | 5X114.3 | $780 | $1020 | ||||||
| RD-SU05 | WRX AWD(EPB)(OE300*50*17mm) | 20~UP | 5X114.3 | $780 | $1020 | ||||||
| RD-SU01 | LEGACY BN(EPB)(OE300*50*17mm) | 14~UP | 5X114.3 | $780 | $1020 | ||||||
| RD-SU02 | LEVORG(EPB)(OE300*50*17mm) | 16~UP | 5X114.3 | $780 | $1020 | ||||||
| RD-SU03 | XV(GT)(EPB)(OE285*47*17mm) | 17~UP | 5X100 | $780 | $1020 | ||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-TE01 | MODEL 3(EPB)(OE335*49*20mm) | 17~20 | 5X114.3 | $1480 ▲ |
|||||||
| RD-TE02 | MODEL 3PERFORMANCE (EPB)(OE335*57*20mm) | 17~20 | 5X114.3 | $1480 ▲ |
|||||||
| RD-TE03 | MODEL Y(EPB)(OE335*49*20mm) | 20~UP | 5X114.3 | $1480 ▲ |
|||||||
| RD-TE04 | MODEL YPERFORMANCE (EPB)(OE335*57*20mm) | 20~UP | 5X114.3 | $1480 ▲ |
|||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-TO01 | ALPHARD III(AH30) (EPB)(OE300*40*20mm) | 15~23 | 5X114.3 | $1020 | $1480 ▲ |
||||||
| RD-TO03 | COROLLA ALTIS(E210)(OE260*41*9mm) | 18~UP | 5X100 | $690 | $830 | ||||||
| RD-TO04 | COROLLASPORT/AURIS (E210)(EPB)(OE265*45*10mm) | 18~UP | 5X100 | $830 | $1020 | ||||||
| RD-TO02 | C-HR(EPB)(OE281*40*12mm) | 17~18 | 5X114.3 | $690 | $1030 | ||||||
| RD-TO02-1 | RAV4(XA50)(EPB)(OE282*39*12mm) | 19~UP | 5X114.3 | $690 | $1030 ▲ |
||||||
| RD-TO06 | SUPRA(J29/A90) (EPB)(OE300*42*20mm) | 19~UP | 5X112 | $1020 | $1280 | ||||||
| RD-TO07 | SUPRA(J29/A90) (EPB)(OE345*65*24mm) | 19~UP | 5X112 | $1280 | |||||||
| RD-TO05 | SIENNA IV(XL40) (EPB)(OE317*43*18mm) | 20~UP | 5X114.3 | $1480 ▲ |
|||||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-VO10 | ARTEON(3H7)(EPB)(OE300*52*12mm) | 17~UP | 5X112 | $690 | $1030 ▲ |
$1020 | |||||
| RD-VO11 | ARTEON(3H7)(EPB)(OE310*52*22mm) | 17~UP | 5X112 | $780 | $1020 | $1280 | |||||
| RD-VO06 | BORA(OE239*45*9mm) | 99~05 | 5X100 | $690 | |||||||
| RD-VO04-1 | CADDY(OE272*52*10mm) | 10~15 | 5X112 | $690 | $830 | ||||||
| RD-VO09 | CADDY(OE272*50*10mm) | 16~UP | 5X112 | $690 | $830 | ||||||
| RD-VO09-1 | CADDY 4MOTION (OE272*50*10mm) | 16~UP | 5X112 | $690 | $830 | ||||||
| RD-VO06-1 | GOLF 4(OE232*45*9mm) | 98~03 | 5X100 | $690 | |||||||
| RD-VO07 | GOLF 5(OE255*45*10mm) | 03~07 | 5X112 | $690 | |||||||
| RD-VO01 | GOLF 5 GTI(OE282*52*12mm) | 05~07 | 5X112 | $690 | $830 | ||||||
| RD-VO02 | GOLF 5 R32(OE310*52*22mm) | 05~08 | 5X112 | $780 | $1020 | ||||||
| RD-VO07-1 | GOLF 6(OE255*45*10mm) | 08~13 | 5X112 | $690 | |||||||
| RD-VO05 | GOLF 6 GTI(OE282*52*12mm) | 08~09 | 5X112 | $690 | $830 | ||||||
| RD-VO04 | GOLF 6 GTI(OE272*52*10mm) | 08~13 | 5X112 | $690 | $830 | ||||||
| RD-VO02-1 | GOLF 6R(OE310*52*22mm) | 10~12 | 5X112 | $780 | $1020 | ||||||
| RD-VO03 | GOLF 7(EPB)(OE272*52*10mm) | 13~20 | 5X112 | $690 | $1030 ▲ |
$1020 | |||||
| RD-VO03-1 | GOLF 7R(EPB)(OE310*52*22mm) | 14~20 | 5X112 | $780 | $1020 | $1280 | |||||
| RD-VO07-2 | NEW BEETLE(A5)(OE232*45*9mm) | 12~UP | 5X112 | $690 | |||||||
| RD-VO01-4 | PASSAT B6(OE282*52*12mm) | 05~10 | 5X112 | $690 | $830 | ||||||
| RD-VO01-5 | PASSAT B7(EPB)(OE282*52*12mm) | 10~15 | 5X112 | $690 | $830 | ||||||
| RD-VO08 | PASSAT R B8(EPB)(OE310*52*22mm) | 15~UP | 5X112 | $780 | $1020 | $1280 | |||||
| RD-VO07-3 | SCIROCCO(OE255*45*10mm) | 08~17 | 5X112 | $690 | |||||||
| RD-VO04-3 | SCIROCCO(OE272*52*10mm) | 08~17 | 5X112 | $690 | $830 | ||||||
| RD-VO01-2 | SCIROCCO(OE282*52*12mm) | 08~17 | 5X112 | $690 | $830 | ||||||
| RD-VO02-2 | SCIROCCO R(OE310*52*22mm) | 08~17 | 5X112 | $780 | $1020 | ||||||
| RD-VO05-1 | SHARAN 7N(EPB)(OE282*49*12mm) | 10~15 | 5X112 | $690 | $830 | ||||||
| RD-VO04-2 | TOURAN MK1(OE272*52*10mm) | 03~15 | 5X112 | $690 | $830 | ||||||
| RD-VO03-3 | TOURAN MK2(EPB)(OE272*52*10mm) | 15~UP | 5X112 | $690 | $1030 ▲ |
$1020 | |||||
| RD-VO03-5 | TIGUAN R MK2(EPB)(OE310*52*22mm) | 20~UP | 5X112 | $780 | $1020 | $1280 | |||||
| RD-VO01-3 | TIGUAN MK1(EPB)(OE282*52*12mm) | 08~13 | 5X112 | $690 | $830 | ||||||
| RD-VO03-2 | TIGUAN MK2(EPB)(OE300*52*12mm) | 16~UP | 5X112 | $690 | $1030 ▲ |
$1020 | |||||
| RD-VO03-4 | T-ROC 4WD(EPB)(OE272*50*10mm) | 17~UP | 5X112 | $690 | $1030 ▲ |
$1020 | |||||
| PART NO. | MODEL | YEAR | PCD | SOLID DISC | VENTED DISC | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 286mm | 304mm | 325mm |
350mm (floating) |
370mm (floating) |
330mm |
350mm (floating) |
370mm (floating) |
||||
| RD-VL01 | V50(OE280*45*11mm) | 04~12 | 5X108 | $690 | $830 | ||||||
| RD-VL02 | V60 MK1(EPB)(OE302*45*22mm) | 10~18 | 5X108 | $1220 ▲ |
|||||||
| RD-VL03 | V60 MK1(EPB)(OE302*45*11mm) | 10~18 | 5X108 | $1030 ▲ |
|||||||
| RD-VL05 | V60 MK2(EPB)(OE320*54*20mm) | 18~UP | 5X108 | $1020 | $1280 | ||||||
| RD-VL04 | XC40(EPB)(OE303*45*12mm) | 18~UP | 5X108 | $1030 ▲ |
|||||||
| RD-VL05-1 | XC60 MK2(EPB)(OE320*54*20mm) | 17~UP | 5X108 | $1020 | $1280 | ||||||
| RD-VL05-2 | V90 MK1(EPB)(OE320*54*20mm) | 16~UP | 5X108 | $1020 | $1280 | ||||||
RELATED PRODUCTS
CARBON DISC
LIGHTWEIGH CENTER BELL
REAR ENLARGED DISC KIT
TWIN COLOR CENTER BELL
BRAKE PADS
